BS 40 Maxi pro

Maximum sealing:
400 × 285 mm

Maximum shell height:
115 mm

Cycles:
up to 2 per minute*

External dimensions:
790 × 1140 × 1500 mm**

Maximum film width:
470 mm

Compressed air supply:
6 Bar

Vacuum pump:
40 m³/h

Weight:
250 kg

Electrical connection:
3 phases, 230 / 400 V, 50 Hz***

Power:
3 kW

* Depending on the set process parameters
** w × d × h
*** Special voltages on request
prev next

INFO

Product catalog
2.1 MB, PDF-File
Data sheet BS 40 Maxi pro
964.4 KB, PDF-File
Ask now for price
prev next

Types of seals:

Sealing Vacuum/Gas Skin Deep Skin

Features

  • Powerful Busch vacuum pump
  • Quick-change system for sealing unit
  • Huge choice of standard frames
  • Advanced sensor control
  • Also available as skin sealing model

suitable for:

SEALING PLATES USAGE

Sealing plates usage icon1fache single icon2fachs double icon3fachs triple icon4fachs fourfold
Max. with contour cut 400 × 285 280 × 190 130 × 280 285 × 87
Max. with skin function 380 × 270 175 × 275 ✕ ✕
Max. with high skin function 360 × 260 180 × 260 ✕ ✕
Sealing plates usage icon2fachw double icon4fachw fourfold icon6fachw sixfold icon8fachw eightfold
Max. with contour cut. 400 × 137 187 × 137 100 × 100 ✕
Max. with skin function. ✕ 187 × 137 ✕ ✕
Sealing plates usage icon1fachr single icon2fachr double icon3fachr triple icon6fachr sixfold
Max. with contour cut ø 280 ø 185 ø 130 ø 110
Max. with skin function ✕ ✕ ✕ ✕



w x d (in mm)
ø (in mm)

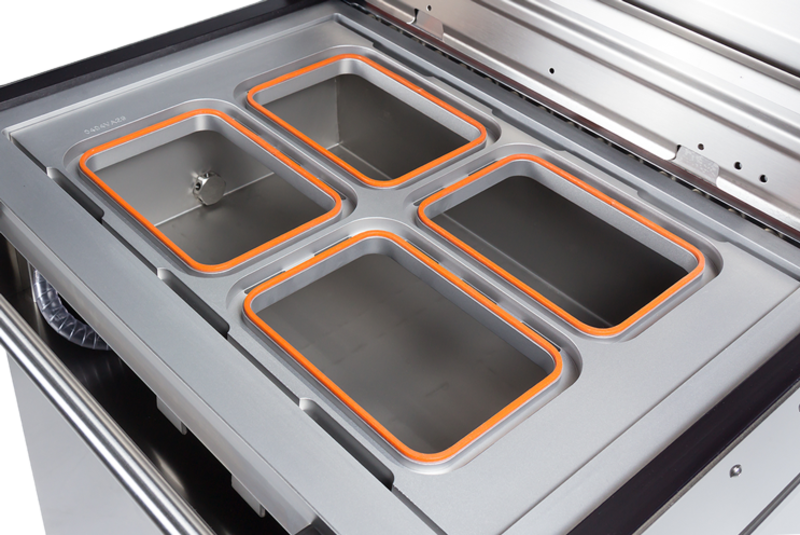

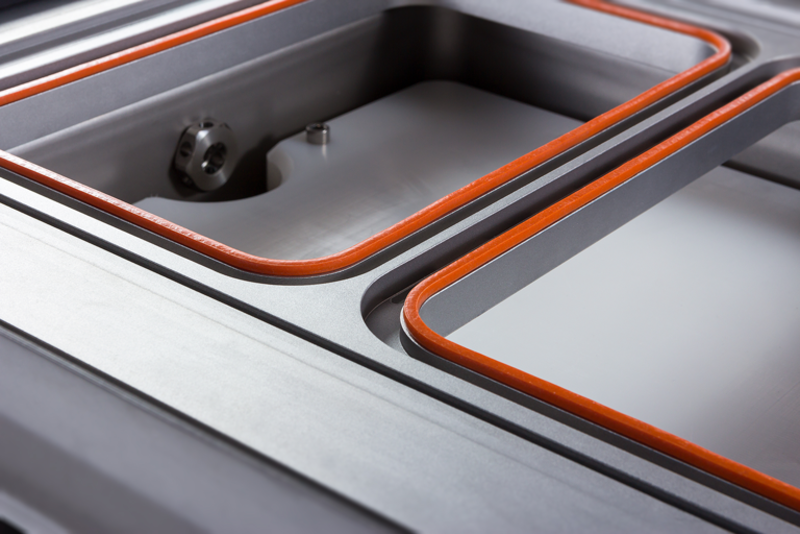

SEALING UNIT

  • Stable heat distribution
  • Compatible with a wide range of standard frames
  • Bespoke frames available on request
  • Teflon-coated surface
  • Compressed air assistance for safe sealing
  • Quick-change system (tool-free)
  • Precision cutting blade

TRAYS AND FOILS

  • Catering for up to 5kg of product
  • System solutions for various products: vegetables, meat, fish, pasta, etc.
  • Trays made in PP, PET, CPET, HDPE, etc.
  • Top-grade micro-lasered sealing foil for virtually any application
  • Foils, trays, etc. available from a single system supplier

Design

  • Intuitive control interface layout
  • Optimised accessibility to all process-relevant elements
  • Stainless steel housing
  • Quick-release frames
  • Quick foil change
  • Easy to clean
  • Automatic foil collection
  • Shielding gas connection min. 3 bar / max. 6 bar / ⌀ 9 mm, female

CONTROL SYSTEM

  • Siemens Simatic Panel
  • 5 free program slots
  • Process parameters for vacuum / MAP / sealing time can be preset to suit product
  • Tool change assisted by control system
  • Skin function parameters (optional)
  • Service program
  • Splash water proof

OPTIONAL EQUIPMENT

  • Wide range of sealing frames available in stock
  • Low-noise air compressor with sound insulation
  • O2 valve
  • Deep drawer with useful height 140mm
  • Automatic drawer

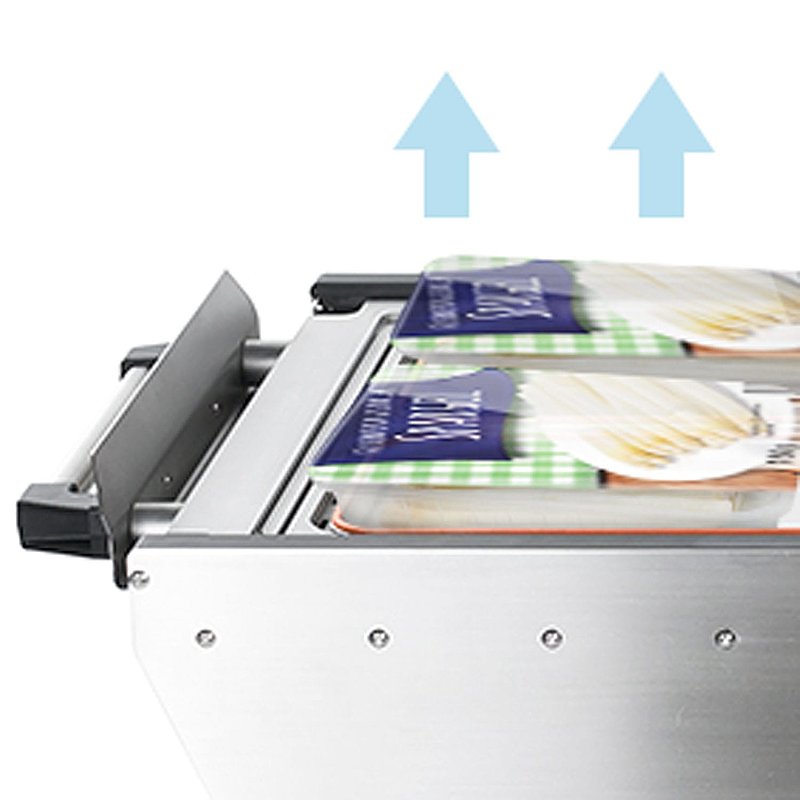

  • Lifting system for trays – max. tray height 5 mm
  • Skin sealing model (including O2 valve)
  • System for sealing with printed foil (print sensor)
  • Trays made in PP, PET, CPET, HDPE, etc.
  • Wide range of sealing foils available as roll stock
