BS 25 Basic

Maximum sealing:
365 × 280 mm

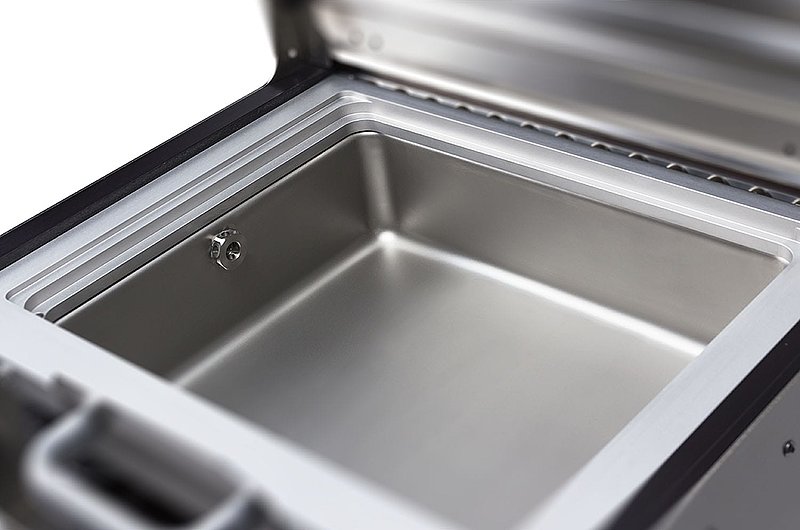

Maximum shell height:
115 mm

Cycles:
1,5 / Min.*

External dimensions:
560 × 970 × 1450 mm**

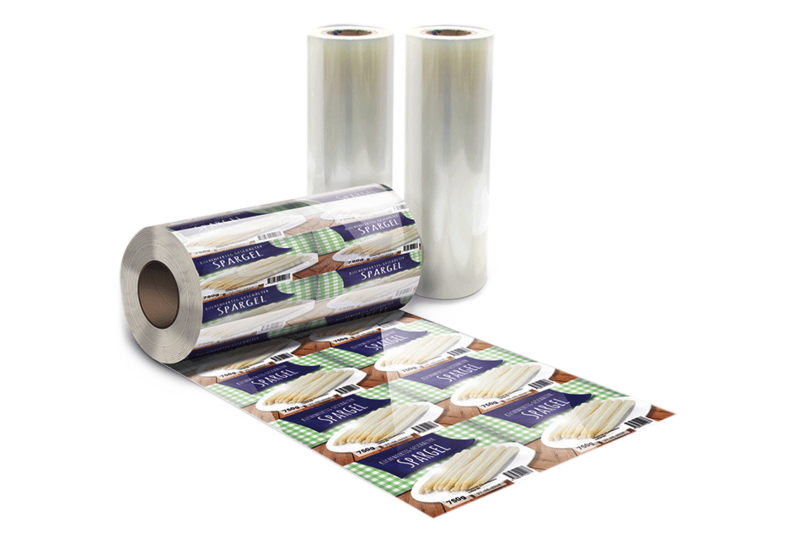

Maximum film width:
380 mm

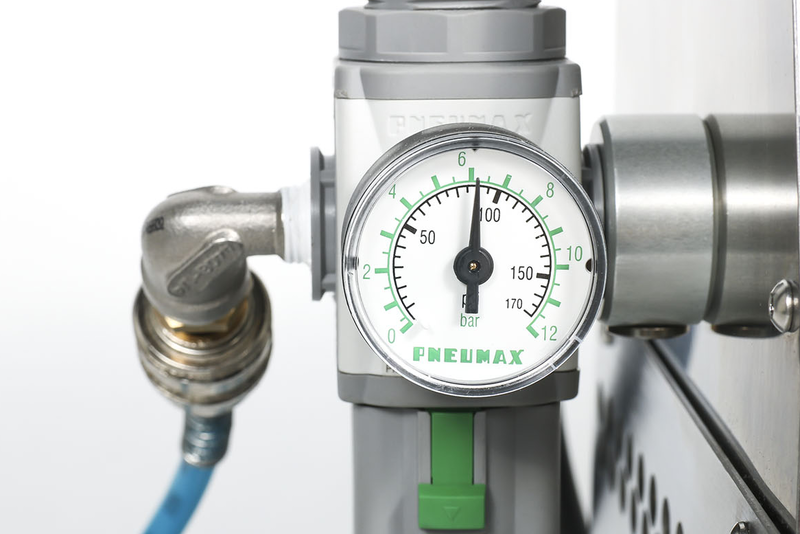

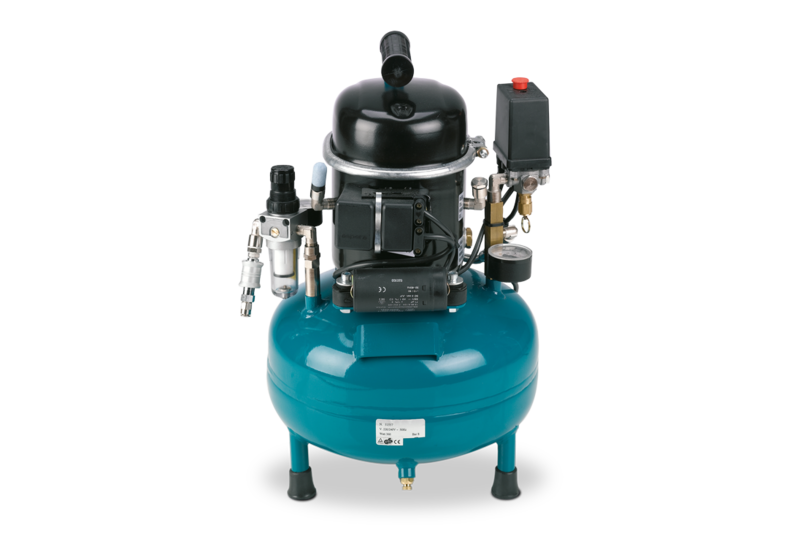

Compressed air supply:
6 Bar

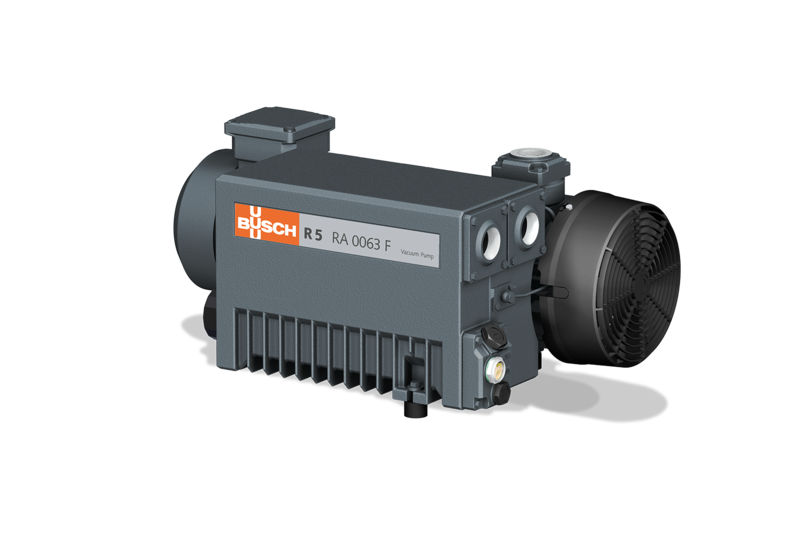

Vacuum pump:
25 m³/h

Weight:
180 kg

Electrical connection:
1 phase, 230 / 400 V, 50 Hz***

Power:
2,1 kW

* Depending on the set process parameters
** w × d × h
*** Special voltages on request

INFO

Product catalog
2.1 MB, PDF-File

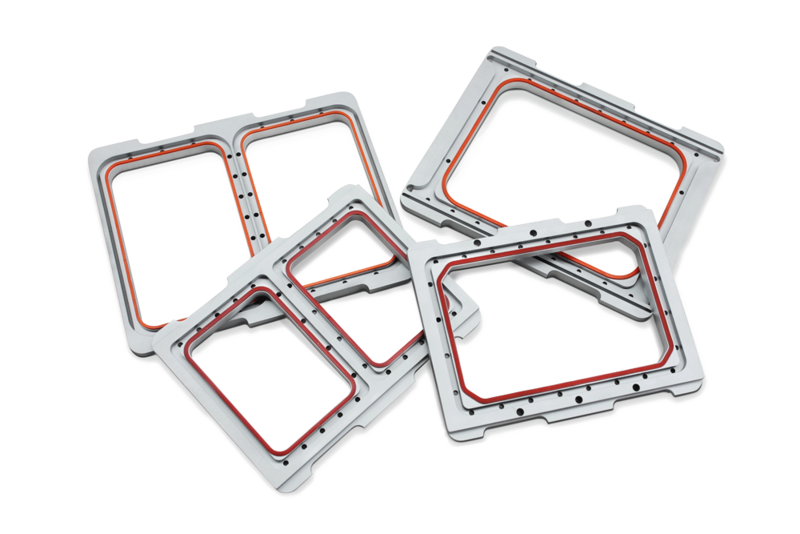

Sealing Vacuum/Gas

Sealing plates usage	icon1fache single	icon2fachs double	icon3fachs triple	icon4fachs fourfold

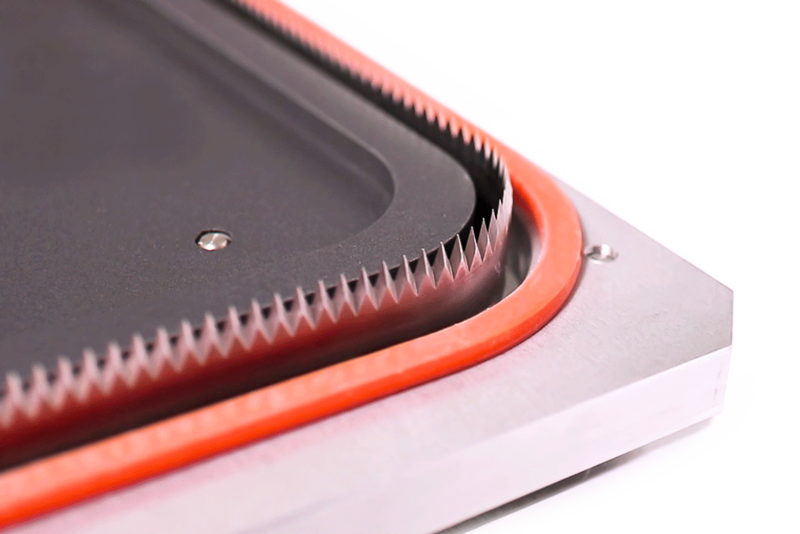

With contour cut max.	350 × 275	175 × 275 178 × 227	95 × 275	75 × 275
Without contour cut max.	365 × 280	180 × 280	115 × 280	85 × 280

Sealing plates usage	icon2fachw double	icon4fachw fourfold	icon6fachw sixfold	icon8fachw eightfold
With contour cut max.	350 × 130	170 × 130	110 × 95	✕
Without contour cut max.	365 × 140	180 × 140	115 × 140	✕

Sealing plates usage	icon1fachr single	icon2fachr double	icon3fachr triple	icon6fachr sixfold
With contour cut max.	ø 270	ø 170	ø 95	ø 95
Without contour cut max.	ø 280	ø 180	ø 115	ø 115

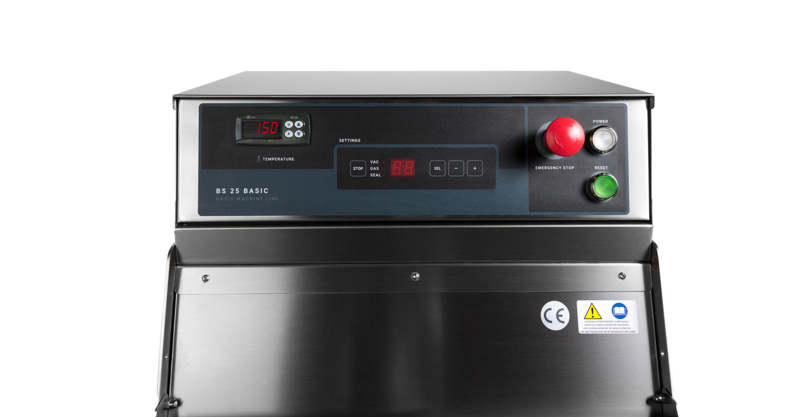

Well-designed intuitive user interface
Temperature sensor configurable for up to 200 °C
5 free program slots
Process parameters for vacuum / MAP / sealing time can be preset to suit product
Stop function to interrupt current process
Splash water proof
